Element thead

Namespace

No namespace

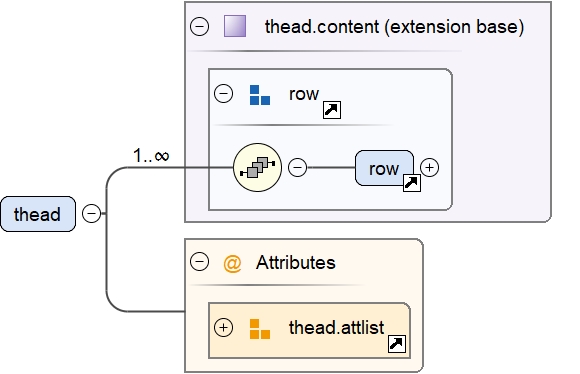

Diagram

Type

extension of Complex Type thead.content

Type hierarchy

Complex Type thead.content

Properties


content:	complex

Used by


Element Group	Element Group thead

Model

Element row

Children

Element row

Instance

<thead audience="" base="" CaseNumber="" class="- topic/thead " conaction="" conkeyref="" conref="" conrefend="" dir="" id="" importance="" xml:lang="" otherprops="" outputclass="" platform="" product="" props="" rev="" status="" translate="" valign="" Why="" xtrc="" xtrf="">
  <row audience="" base="" CaseNumber="" class="- topic/row " conaction="" conkeyref="" conref="" conrefend="" dir="" id="" importance="" xml:lang="" otherprops="" outputclass="" platform="" product="" props="" rev="" rowsep="" status="" translate="" valign="" Why="" xtrc="" xtrf="">{1,1}</row>
</thead>

Attributes


QName	Type	Default	Use
Attribute Change-attrs / @CaseNumber			optional
Attribute Change-attrs / @Why			optional
Attribute filter-atts / @audience			optional
Attribute select-atts / @base			optional
Attribute thead.attlist / @class		- topic/thead	optional
Attribute conref-atts / @conaction	restriction of xs:token		optional
Attribute conref-atts / @conkeyref			optional
Attribute conref-atts / @conref			optional
Attribute conref-atts / @conrefend			optional
Attribute localization-atts / @dir	restriction of xs:token		optional
Attribute id-atts / @id	xs:NMTOKEN		optional
Attribute select-atts / @importance	restriction of xs:token		optional
Attribute filter-atts / @otherprops			optional
Attribute dita.thead.attributes / @outputclass			optional
Attribute filter-atts / @platform			optional
Attribute filter-atts / @product			optional
Attribute filter-atts / @props			optional
Attribute select-atts / @rev			optional
Attribute select-atts / @status	restriction of xs:token		optional
Attribute localization-atts / @translate	restriction of xs:token		optional
Attribute thead.attributes / @valign	restriction of xs:token		optional
Attribute @xml:lang			optional
Attribute global-atts / @xtrc			optional
Attribute global-atts / @xtrf			optional

Source

<xs:element name="thead">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="thead.content">
        <xs:attributeGroup ref="thead.attlist"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
